Miniature Circuit Breaker

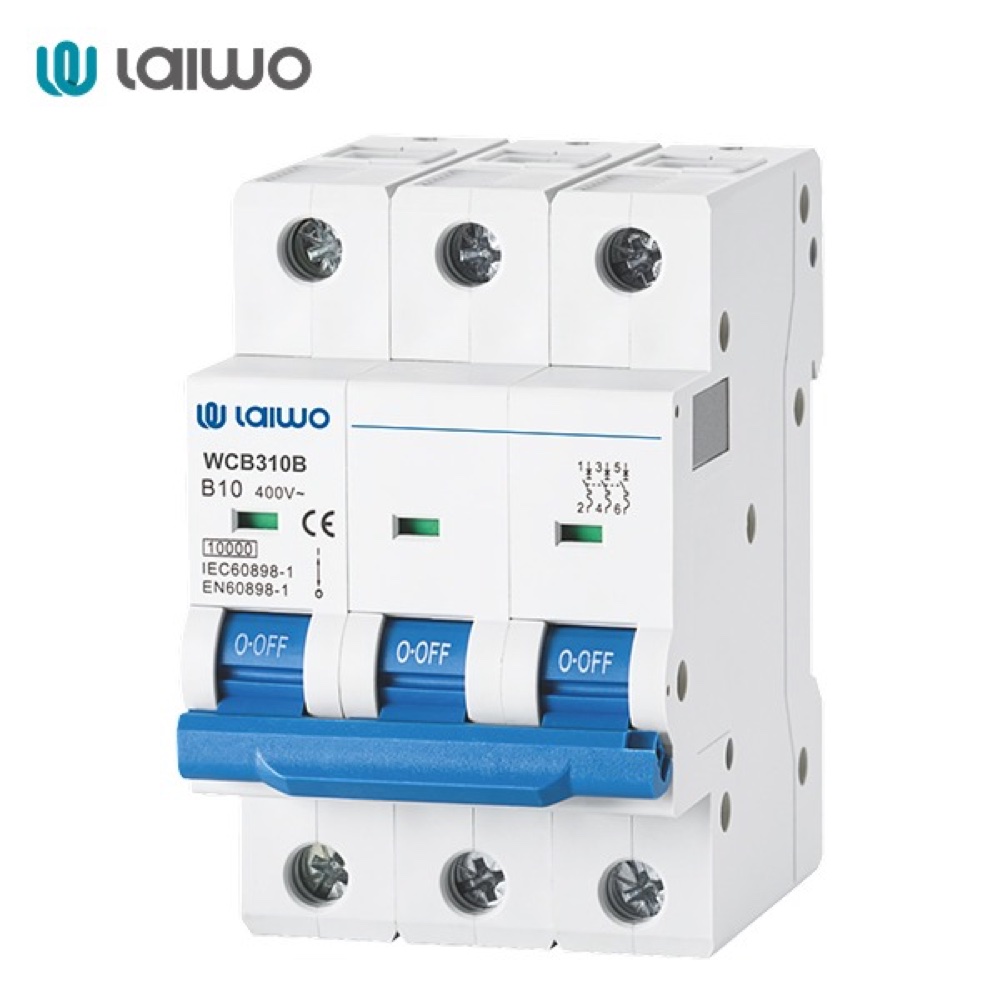

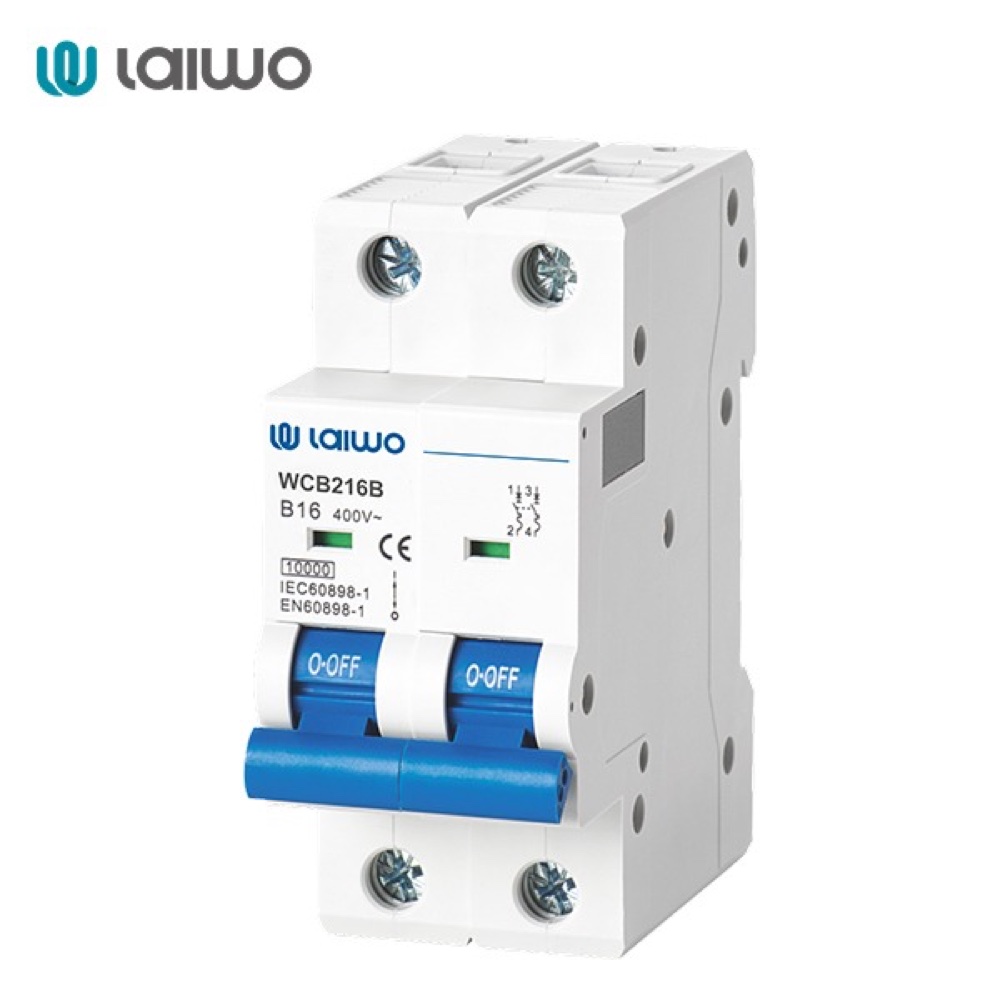

WCB Miniature Circuit Breaker
Where fault levels run higher — commercial boards, supplies close to the transformer — this is the 10kA version of the same modular format, with a 20,000-operation mechanical life.
Technical overview
Core specifications
Rated current In6, 10, 16, 20, 25, 32, 40, 50, 63A
Breaking capacity Icn10kA
Poles1P, 2P, 3P
Trip characteristicB, C, D
Rated voltage Ue (AC)230 / 400V
Rated frequency50 / 60Hz
Insulation voltage Ui500V
Electrical life8,000 operations
Mechanical life20,000 operations
MountingDIN rail
Model selection note Ratings and approval scope vary by configuration.
Include the destination market, application and required rating in your inquiry so sales can match the exact model and documentation.
Product video
See the product and its application.
Short product and application footage to support technical evaluation and specification.
Commercial & documentation
Information purchasing teams expect
Commercial terms are managed by model so purchasing teams can distinguish standard supply, samples and OEM orders.
Sample cost and preparation time are confirmed with the selected model.
Standard and customised orders may use different timelines.
The applicable term is linked to product family, market and supply conditions.
Technical files
Datasheet, dimensions and certificate scope
Technical files are supplied against the selected model so ratings, dimensions and compliance scope remain clear.
PDF · Product datasheet DWG/PDF · Dimensions & installation PDF · Certificate scope
Request Technical Files Typical use
- Low-voltage distribution
- Building projects
- Distributor stock ranges
Compliance references
- IEC / EN 60898-1
Customisation scope
- Brand marking
- Packaging
- Technical literature
