RCBO

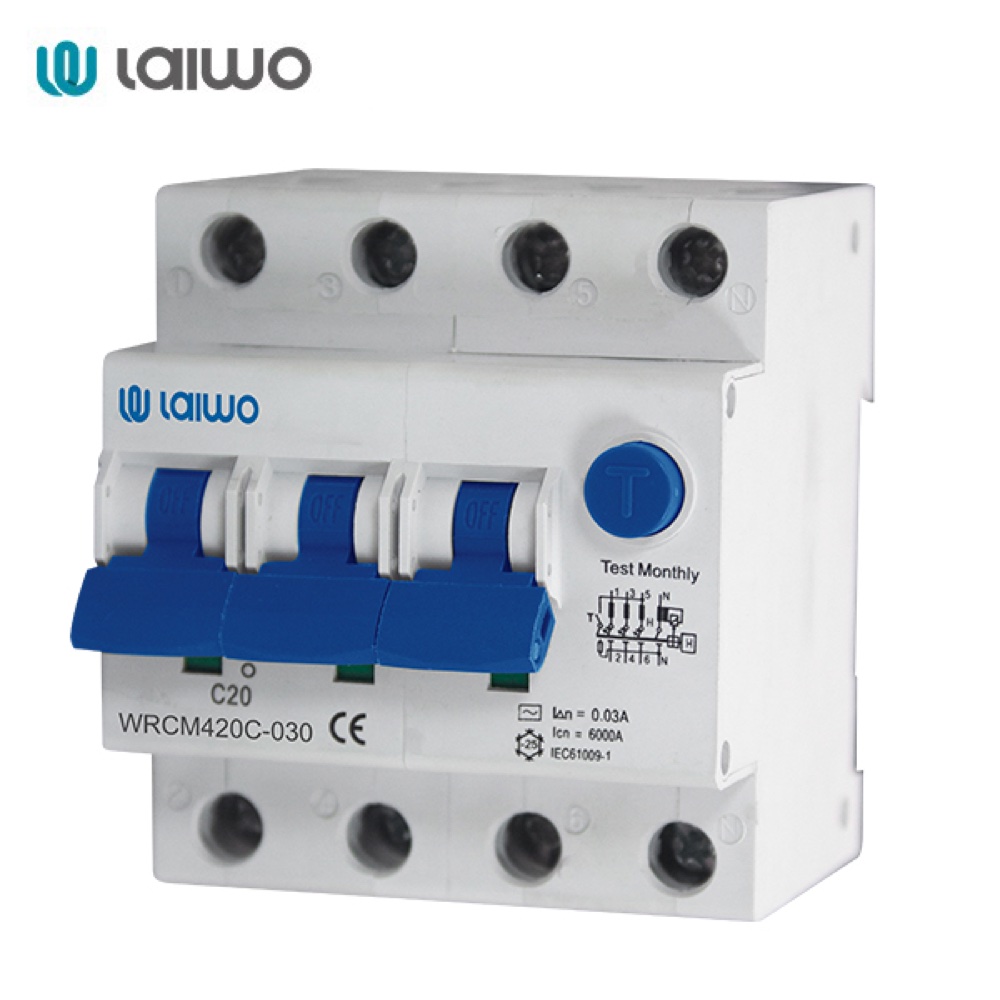

WRCM Electromagnetic RCBO
An electromagnetic tripping system rather than an electronic one, so operation does not depend on the supply voltage being present. Available on C and D characteristics at 10kA.
Technical overview
Core specifications
Rated current In6, 10, 16, 20, 25, 32, 40A
Residual current30mA, 100mA
Poles1P+N, 2P, 4P
Trip characteristicC, D
Breaking capacity Icn10kA
Rated voltage Ue230 / 400V
Rated frequency50Hz
Ingress protectionIP40
Electrical lifeNot less than 4,000 operations
Model selection note Ratings and approval scope vary by configuration.
Include the destination market, application and required rating in your inquiry so sales can match the exact model and documentation.
Product video
See the product and its application.
Short product and application footage to support technical evaluation and specification.
Commercial & documentation
Information purchasing teams expect
Commercial terms are managed by model so purchasing teams can distinguish standard supply, samples and OEM orders.
Sample cost and preparation time are confirmed with the selected model.
Standard and customised orders may use different timelines.
The applicable term is linked to product family, market and supply conditions.
Technical files
Datasheet, dimensions and certificate scope
Technical files are supplied against the selected model so ratings, dimensions and compliance scope remain clear.
PDF · Product datasheet DWG/PDF · Dimensions & installation PDF · Certificate scope
Request Technical Files Typical use
- Commercial final circuits
- Installations with unstable supply
- Panel builder assemblies
Compliance references
- BS EN 61009-1
Customisation scope
- Brand marking
- Packaging
- Technical literature
