Plastic Distribution Box

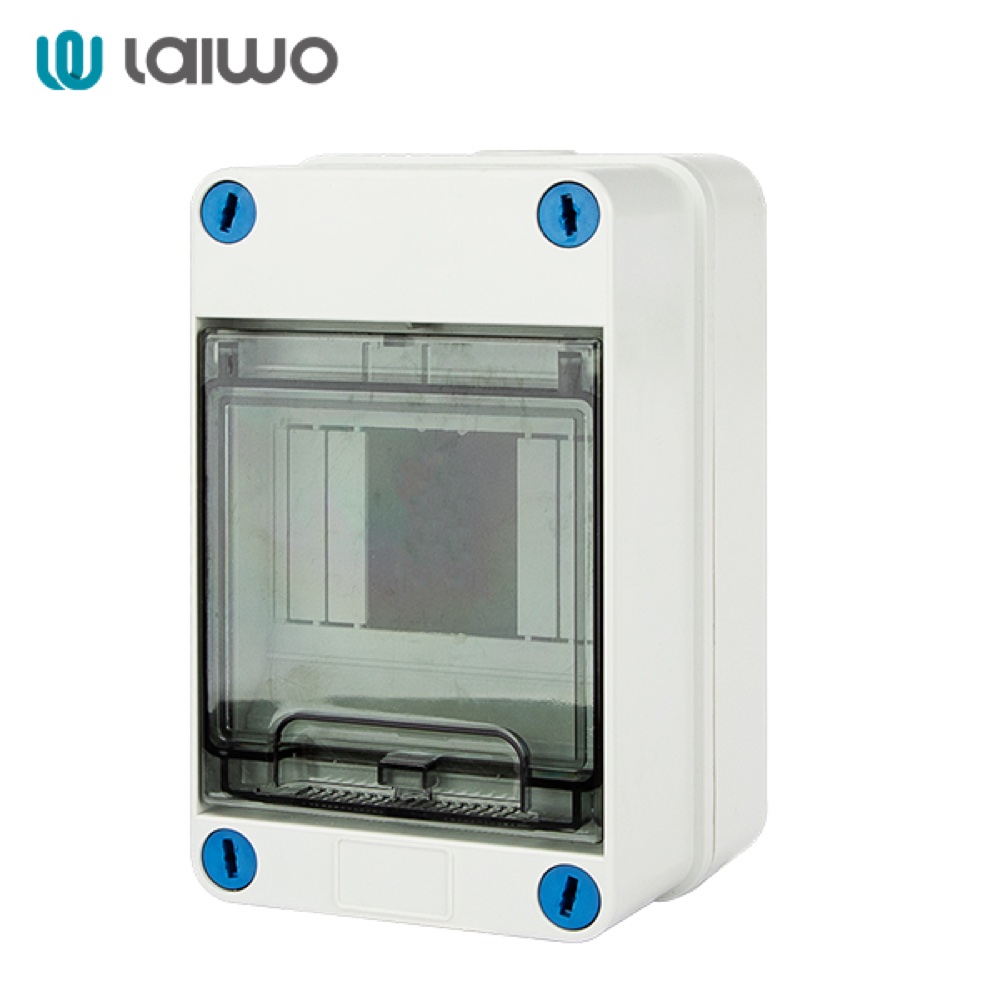

IP65 WHT Plastic Distribution Box
Sealed to IP65 for outdoor and washdown areas, in five sizes from 4 to 18 ways with published dimensions for each.
Technical overview
Core specifications
Part numbersWHT0465, WHT0865, WHT1265, WHT1565, WHT1865
Ways4, 8, 12, 15 or 18
Dimensions105×168×98 · 178×180×98 · 250×209×108 · 305×209×108 · 360×209×108 mm
Ingress protectionIP65
InstallationSurface mounted
BodyFlame-retardant ABS
LidFlame-retardant transparent PC
Supplied withDIN rail and neutral / earth terminal bars
Model selection note Ratings and approval scope vary by configuration.
Include the destination market, application and required rating in your inquiry so sales can match the exact model and documentation.
Product video
See the product and its application.
Short product and application footage to support technical evaluation and specification.
Commercial & documentation
Information purchasing teams expect
Commercial terms are managed by model so purchasing teams can distinguish standard supply, samples and OEM orders.
Sample cost and preparation time are confirmed with the selected model.
Standard and customised orders may use different timelines.
The applicable term is linked to product family, market and supply conditions.
Technical files
Datasheet, dimensions and certificate scope
Technical files are supplied against the selected model so ratings, dimensions and compliance scope remain clear.
PDF · Product datasheet DWG/PDF · Dimensions & installation PDF · Certificate scope
Request Technical Files Typical use
- Outdoor installations
- Washdown and damp areas
- Weather-exposed sub-distribution
Compliance references
- BS EN 61439-3
- CE · UKCA
Customisation scope
- Enclosure marking
- Way count
- Packaging
