Surge Protectors

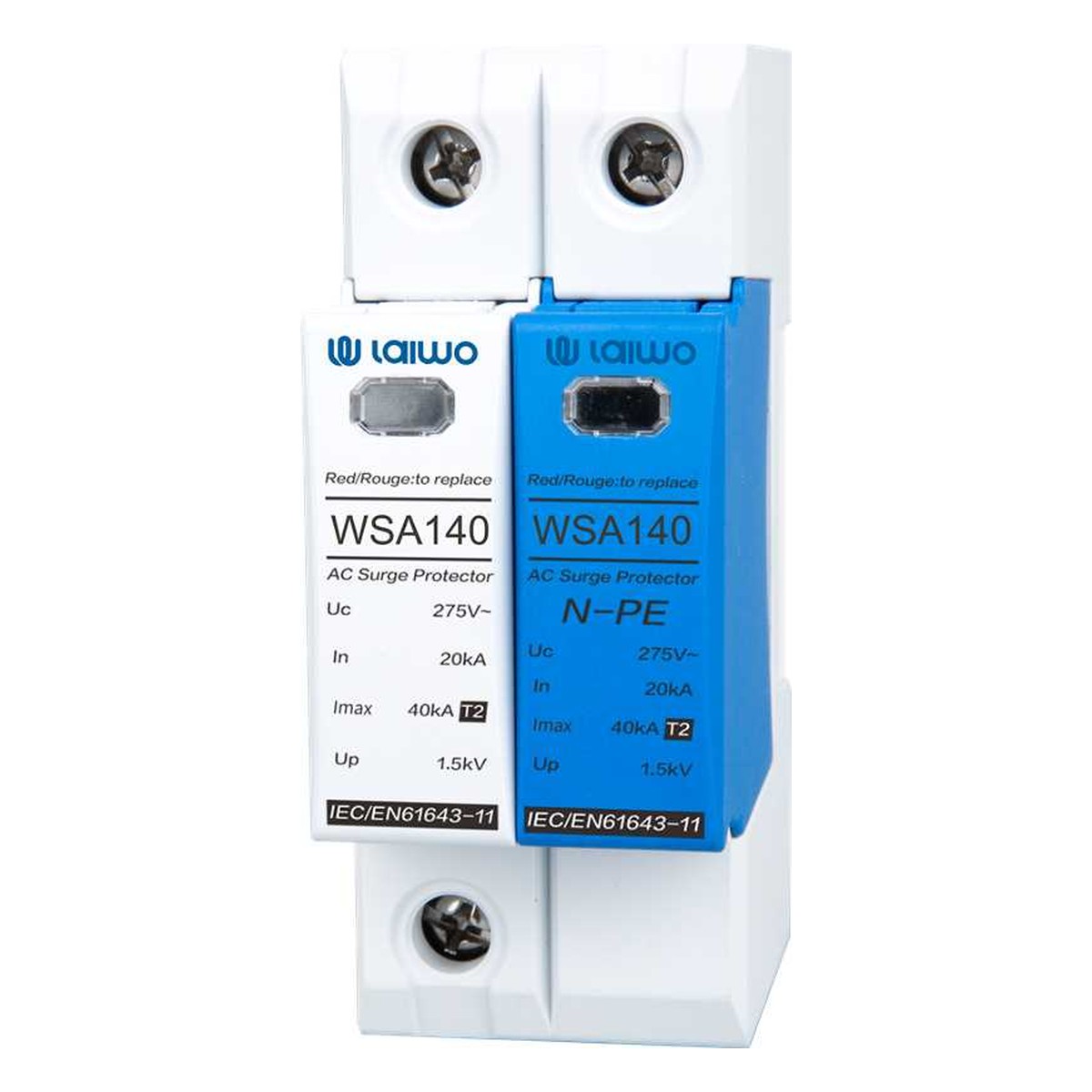

WSA+N Surge Protective Device
The T/T arrangement of the WSA platform. The same three discharge ratings are supplied with a dedicated N-PE module alongside the phase modules, for installations where the neutral is not bonded to earth at the board. Six models: 1P+N on two modules, 3P+N on four.
Technical overview
Core specifications
TypeType 2
SystemT/T, with N-PE protection
Poles1P+N (2 modules), 3P+N (4 modules)
Model rangeWSA120+N / 140+N / 160+N (1P+N) · WSA320+N / 340+N / 360+N (3P+N)
Maximum working voltage Uc275 / 380V
Temporary overvoltage withstand UT440 / 660V AC
Nominal discharge current In10kA (WSA120-320+N) · 20kA (WSA140-340+N) · 30kA (WSA160-360+N)
Maximum discharge current Imax20kA (WSA120-320+N) · 40kA (WSA140-340+N) · 60kA (WSA160-360+N)
Voltage protection level Up1.3kV at 10kA · 1.5kV at 20kA · 2.0kV at 30kA
Residual voltage at 5kA1.2 / 1.3 / 1.5kV
Admissible short-circuit current25kA
Backup fuse gG63A max (WSA120-320+N) · 100A max (WSA140-340+N and WSA160-360+N)
Operating temperature-40 to +85 degrees C
Protection classIP20
Dimensions90 x 36mm (1P+N) / 90 x 72mm (3P+N) x 67mm, 35mm DIN rail
Model selection note Ratings and approval scope vary by configuration.
Include the destination market, application and required rating in your inquiry so sales can match the exact model and documentation.
Product video
See the product and its application.
Short product and application footage to support technical evaluation and specification.
Product video available on request
A product video for this model is being prepared. Contact sales to request current product or application footage.
Request product video → Commercial & documentation
Information purchasing teams expect
Commercial terms are managed by model so purchasing teams can distinguish standard supply, samples and OEM orders.
Sample cost and preparation time are confirmed with the selected model.
Standard and customised orders may use different timelines.
The applicable term is linked to product family, market and supply conditions.
Technical files
Datasheet, dimensions and certificate scope
Technical files are supplied against the selected model so ratings, dimensions and compliance scope remain clear.
PDF · Product datasheet DWG/PDF · Dimensions & installation PDF · Certificate scope
Request Technical Files Typical use
- T/T residential installations
- Commercial distribution boards
- Panel builder assemblies
Compliance references
- IEC / EN 61643-11
- CE · UKCA marked on the product
Customisation scope
- Marking
- Packaging
- Model assortment
