Miniature Circuit Breaker

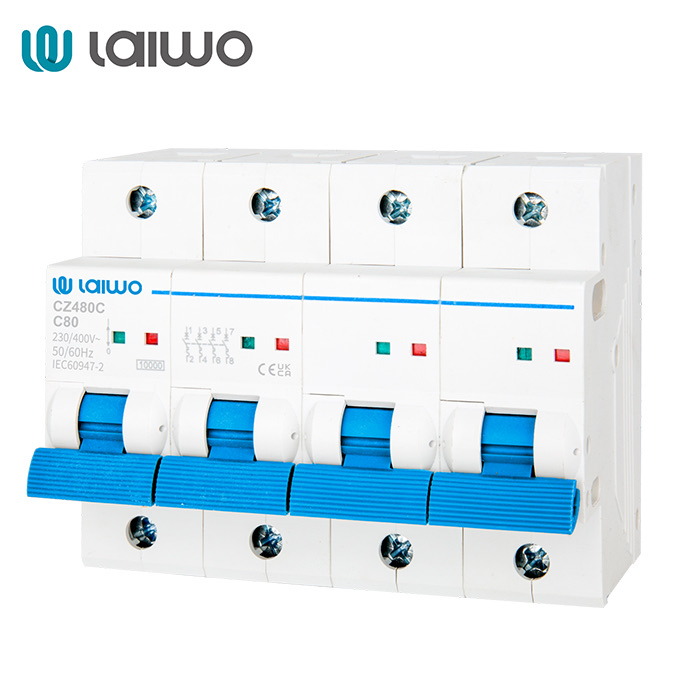

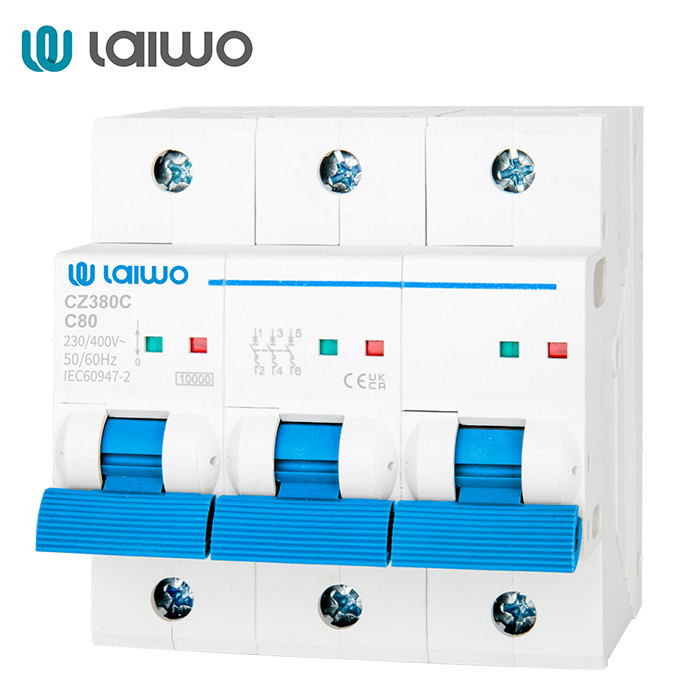

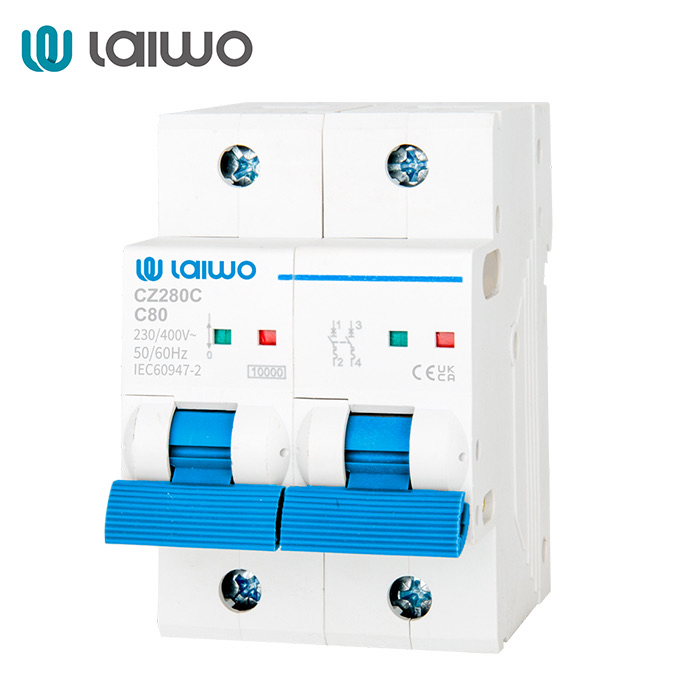

WCZ Miniature Circuit Breaker
Where the other MCB series stop at 100A, this one starts at 80A and runs to 125A on a 10kA breaking capacity — the range used on incomers and sub-main circuits rather than final circuits.
Technical overview
Core specifications
Rated current In80, 100, 125A
Poles1P, 2P, 3P, 4P
Breaking capacity10kA
Trip characteristicB, C, D
Rated voltage Ue (AC)400V
Insulation voltage Ui500V
Impulse withstand Uimp6kV
Terminal capacity50mm²
Thermal trip benchmark temperature30°C
Ambient temperature-5 to +40°C; 24-hour average not above +35°C
Pollution degree2
Installation categoryII, III
Contact indicationRed / green contact position indicator
Model selection note Ratings and approval scope vary by configuration.
Include the destination market, application and required rating in your inquiry so sales can match the exact model and documentation.
Product video
See the product and its application.
Short product and application footage to support technical evaluation and specification.
Commercial & documentation
Information purchasing teams expect
Commercial terms are managed by model so purchasing teams can distinguish standard supply, samples and OEM orders.
Sample cost and preparation time are confirmed with the selected model.
Standard and customised orders may use different timelines.
The applicable term is linked to product family, market and supply conditions.
Technical files
Datasheet, dimensions and certificate scope
Technical files are supplied against the selected model so ratings, dimensions and compliance scope remain clear.
PDF · Product datasheet DWG/PDF · Dimensions & installation PDF · Certificate scope
Request Technical Files Typical use
- Incoming supply protection
- Sub-main distribution
- Higher-current commercial circuits
Compliance references
- IEC / EN 60898-1
- CB · SEMKO · CE · UKCA
Customisation scope
- Brand marking
- Pole configuration
- Packaging
