Plug-in MCB

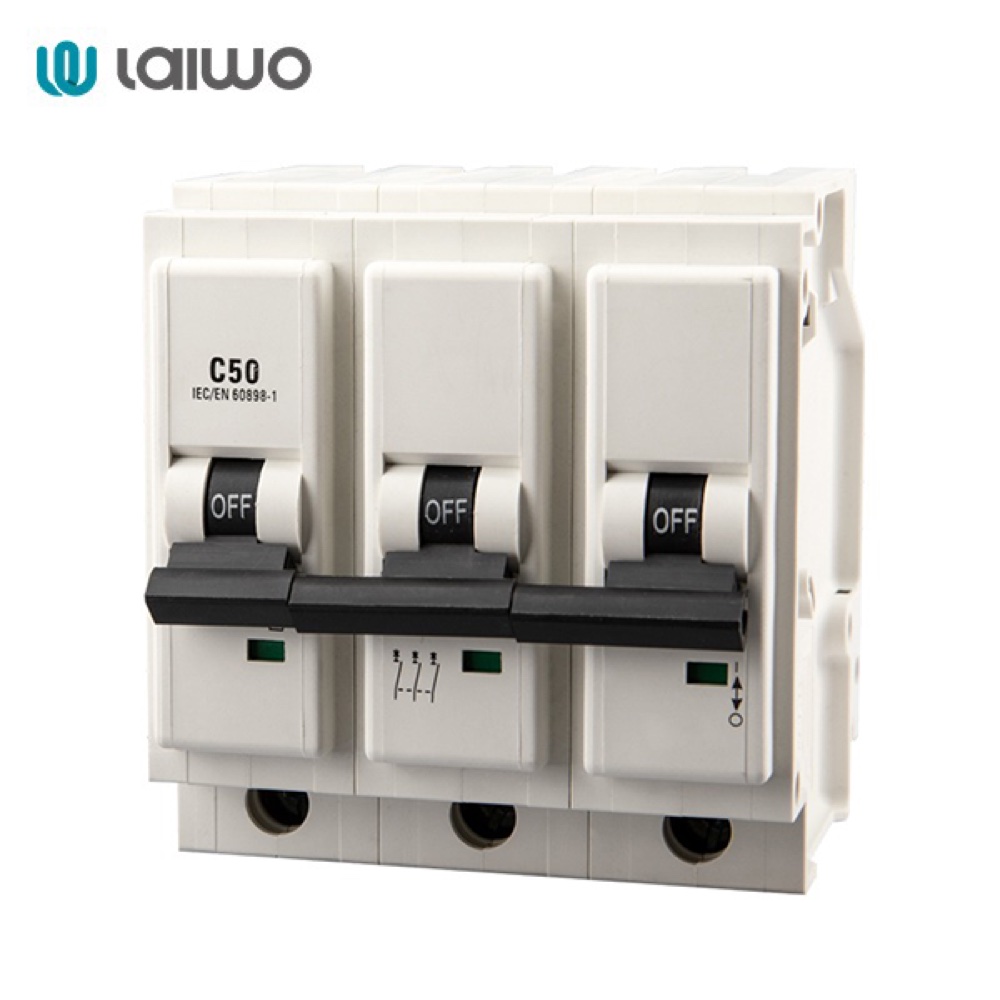

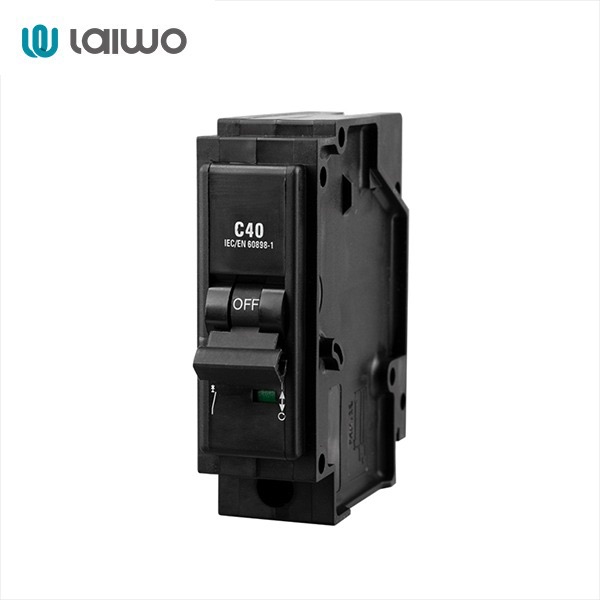

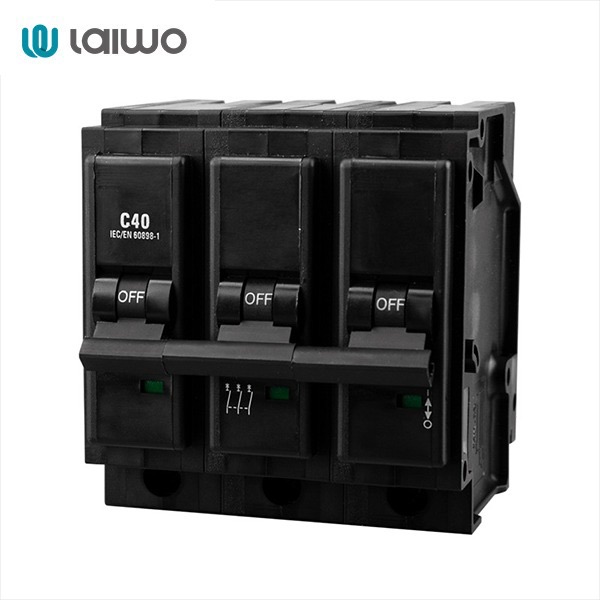

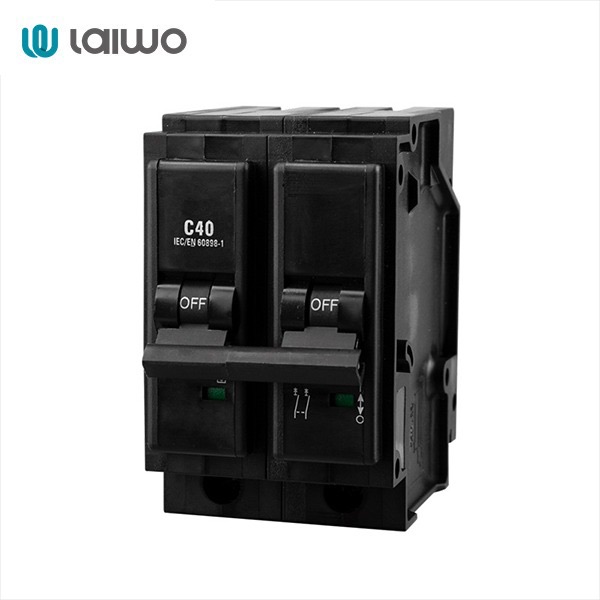

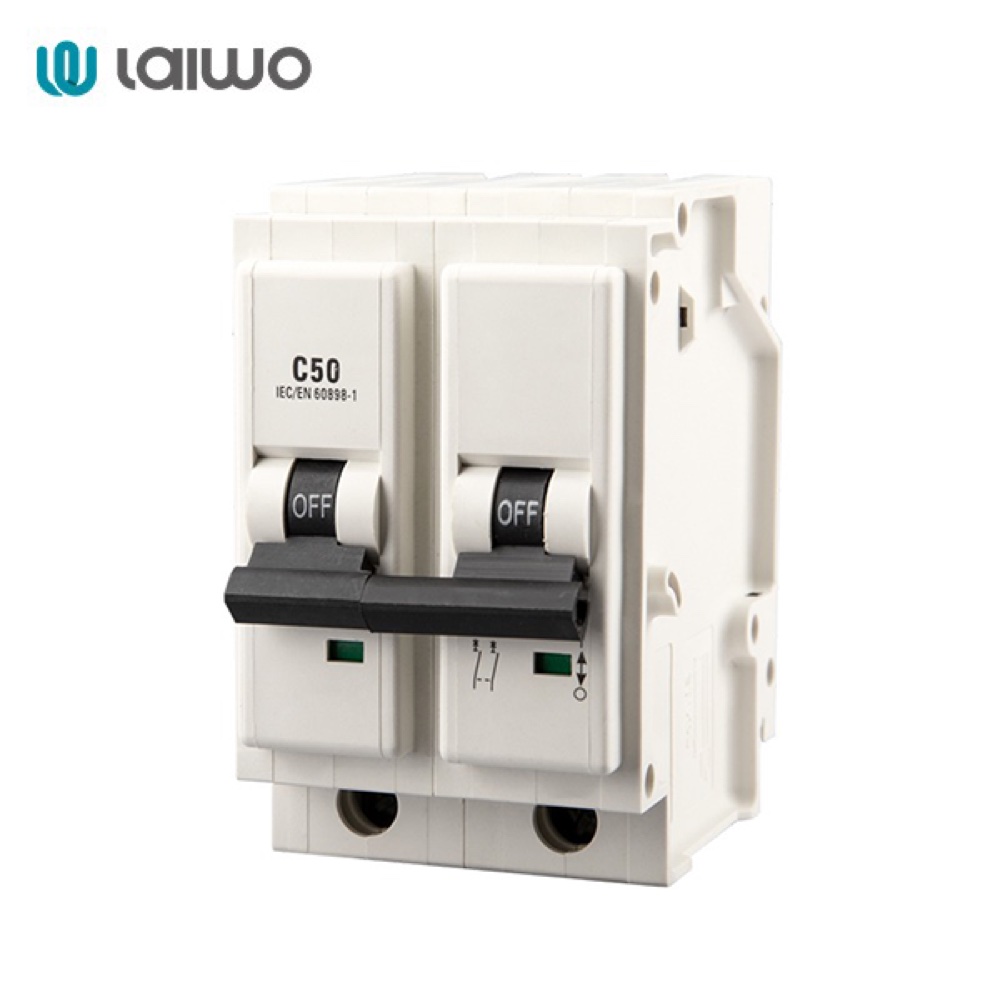

WCP Plug-in Miniature Circuit Breaker
The same 6kA rating and 6–63A range as the DIN-rail series, in a plug-in body that mounts onto a fixed base rather than clipping to a rail.
Technical overview
Core specifications
Rated current In6, 10, 16, 20, 25, 32, 40, 50, 63A
Breaking capacity Icn6kA
Poles1P, 2P, 3P
Trip characteristicB, C
Rated voltage Ue (AC)230 / 400V
Rated frequency50 / 60Hz
Insulation voltage Ui500V
Impulse withstand Uimp (1.2/50)4000V
Electrical life8,000 operations
Ingress protectionIP20
MountingPlug-in base
Model selection note Ratings and approval scope vary by configuration.
Include the destination market, application and required rating in your inquiry so sales can match the exact model and documentation.
Product video
See the product and its application.
Short product and application footage to support technical evaluation and specification.
Commercial & documentation
Information purchasing teams expect
Commercial terms are managed by model so purchasing teams can distinguish standard supply, samples and OEM orders.
Sample cost and preparation time are confirmed with the selected model.
Standard and customised orders may use different timelines.
The applicable term is linked to product family, market and supply conditions.
Technical files
Datasheet, dimensions and certificate scope
Technical files are supplied against the selected model so ratings, dimensions and compliance scope remain clear.
PDF · Product datasheet DWG/PDF · Dimensions & installation PDF · Certificate scope
Request Technical Files Typical use
- Plug-in distribution systems
- Boards that are reconfigured in service
- Panel builder supply
Compliance references
- IEC / EN 60898-1
Customisation scope
- White or black body
- 4-pole on request
- Brand marking
- Packaging
