Garage / EV Consumer Unit
IP65 AL EV Charging Unit

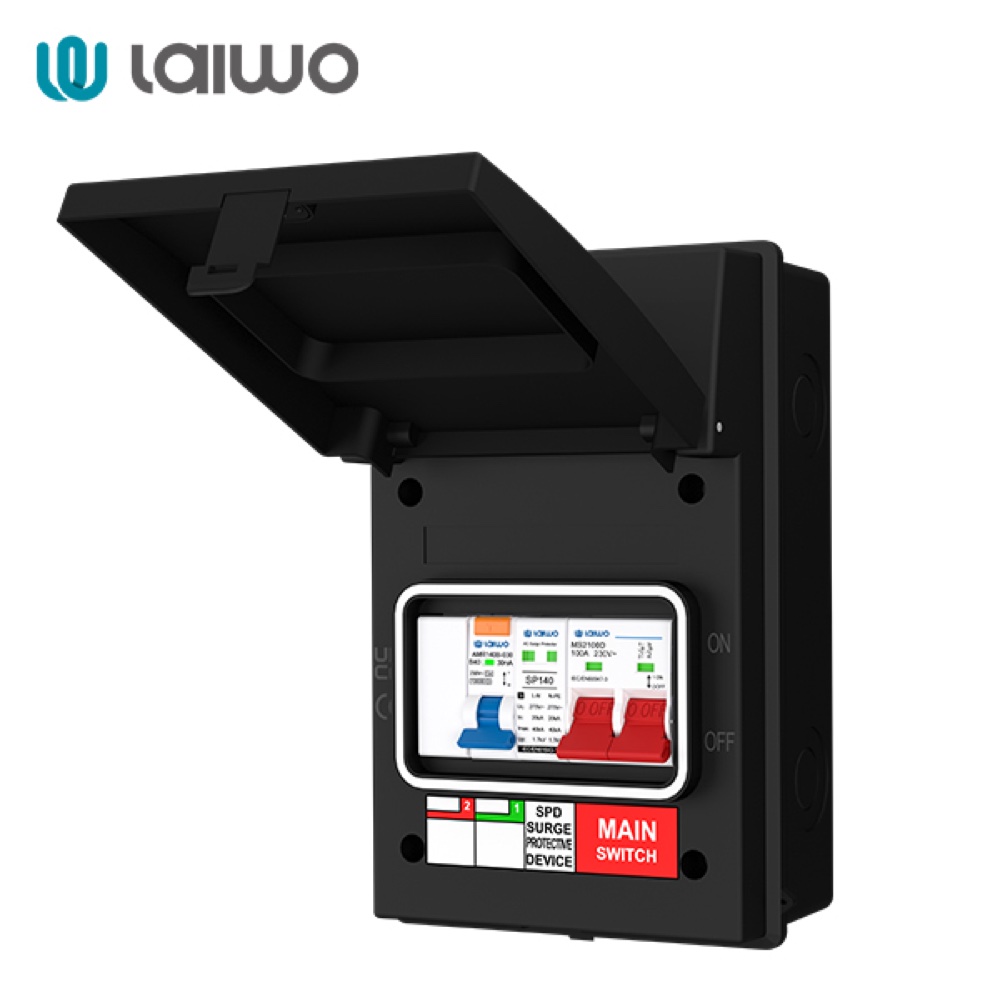

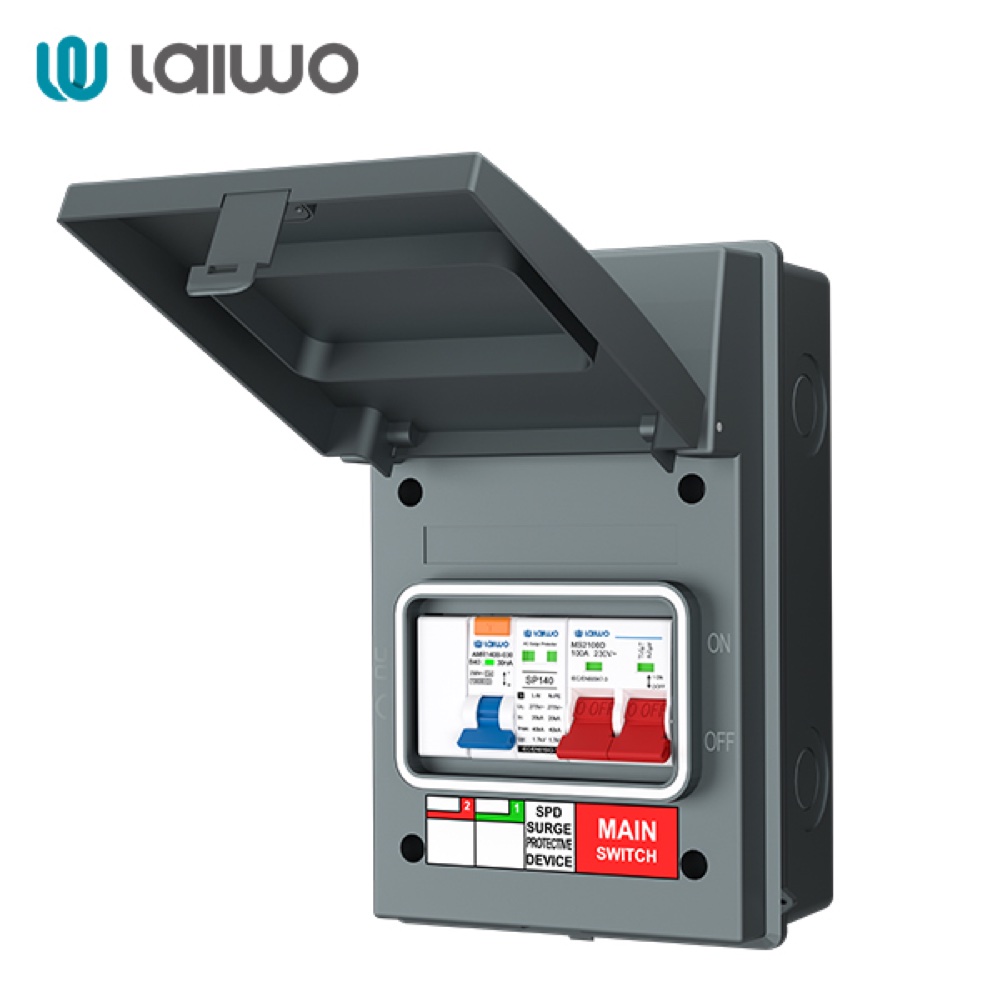

The outdoor EV unit: same die-cast aluminium IP65 housing as the garage version, in five-way and eight-way sizes with surge protection fitted.
Technical overview
Core specifications
ModelsWAVU05 (5 way), WAVU08 (8 way)
Example configurationWAVU05-SR16 — DP 16A RCBO with 20/40kA T2 1P+N SPD, 2 usable ways
EnclosureDie-cast aluminium
Incomer optionsDP Type A RCBO, or DP 100A main switch
Surge protection20/40kA Type 2, 1P+N
Ingress protectionIP65
InstallationSurface mounted
Model selection note Ratings and approval scope vary by configuration.
Include the destination market, application and required rating in your inquiry so sales can match the exact model and documentation.
Product video
See the product and its application.
Short product and application footage to support technical evaluation and specification.
Commercial & documentation
Information purchasing teams expect
Commercial terms are managed by model so purchasing teams can distinguish standard supply, samples and OEM orders.
Sample cost and preparation time are confirmed with the selected model.
Standard and customised orders may use different timelines.
The applicable term is linked to product family, market and supply conditions.
Technical files
Datasheet, dimensions and certificate scope
Technical files are supplied against the selected model so ratings, dimensions and compliance scope remain clear.
PDF · Product datasheet DWG/PDF · Dimensions & installation PDF · Certificate scope
Request Technical Files Typical use
- Outdoor EV charge points
- Car parks and driveways
- Exposed installations
Compliance references
- BS EN 61439-3
- CE · UKCA
Customisation scope
- Enclosure marking
- Populated device configuration
- Project packaging
