Garage / EV Consumer Unit
Mini Metal EV Charging Unit
A five-way steel unit built for a single charge point: an RCBO or main switch on the incomer, a Type 2 surge protector, and the remaining ways left usable.
Technical overview
Core specifications
Part numbersWMVU05-SR16/20/32/40 and WMVU05-MSR16/20/32/40
Ways5
Example configurationWMVU05-SR32 — DP 32A RCBO with 20/40kA T2 1P+N SPD, 2 usable ways
Incomer optionsDP 16A–40A Type A RCBO, or DP 100A main switch
Surge protection20/40kA Type 2, 1P+N
Outgoing devices6A–40A double-line-switched Type A 1P+N RCBO
Cable entry20 and 25mm knockouts, top and bottom
Max cable capacity25 mm²
Ingress protectionIP40
InstallationSurface mounted
Model selection note Ratings and approval scope vary by configuration.
Include the destination market, application and required rating in your inquiry so sales can match the exact model and documentation.
Product video
See the product and its application.
Short product and application footage to support technical evaluation and specification.
Commercial & documentation
Information purchasing teams expect
Commercial terms are managed by model so purchasing teams can distinguish standard supply, samples and OEM orders.
Sample cost and preparation time are confirmed with the selected model.
Standard and customised orders may use different timelines.
The applicable term is linked to product family, market and supply conditions.
Technical files

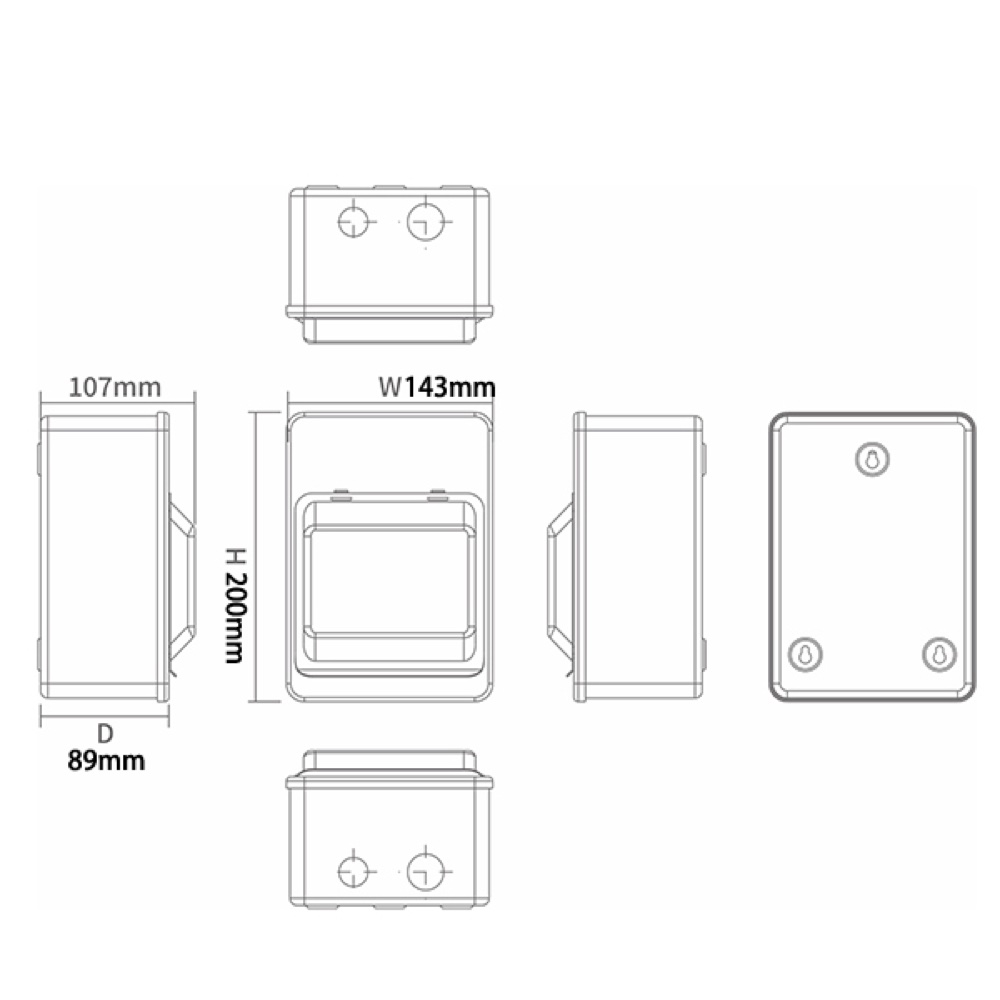

Datasheet, dimensions and certificate scope
Technical files are supplied against the selected model so ratings, dimensions and compliance scope remain clear.
PDF · Product datasheet DWG/PDF · Dimensions & installation PDF · Certificate scope
Request Technical Files Typical use
- Domestic EV charge points
- Single-charger installations
- Distributor stock ranges
Compliance references
- BS EN 61439-3
- CE · UKCA
Customisation scope
- Enclosure marking
- Populated device configuration
- Project packaging
