Plug-in MCB Distribution Box

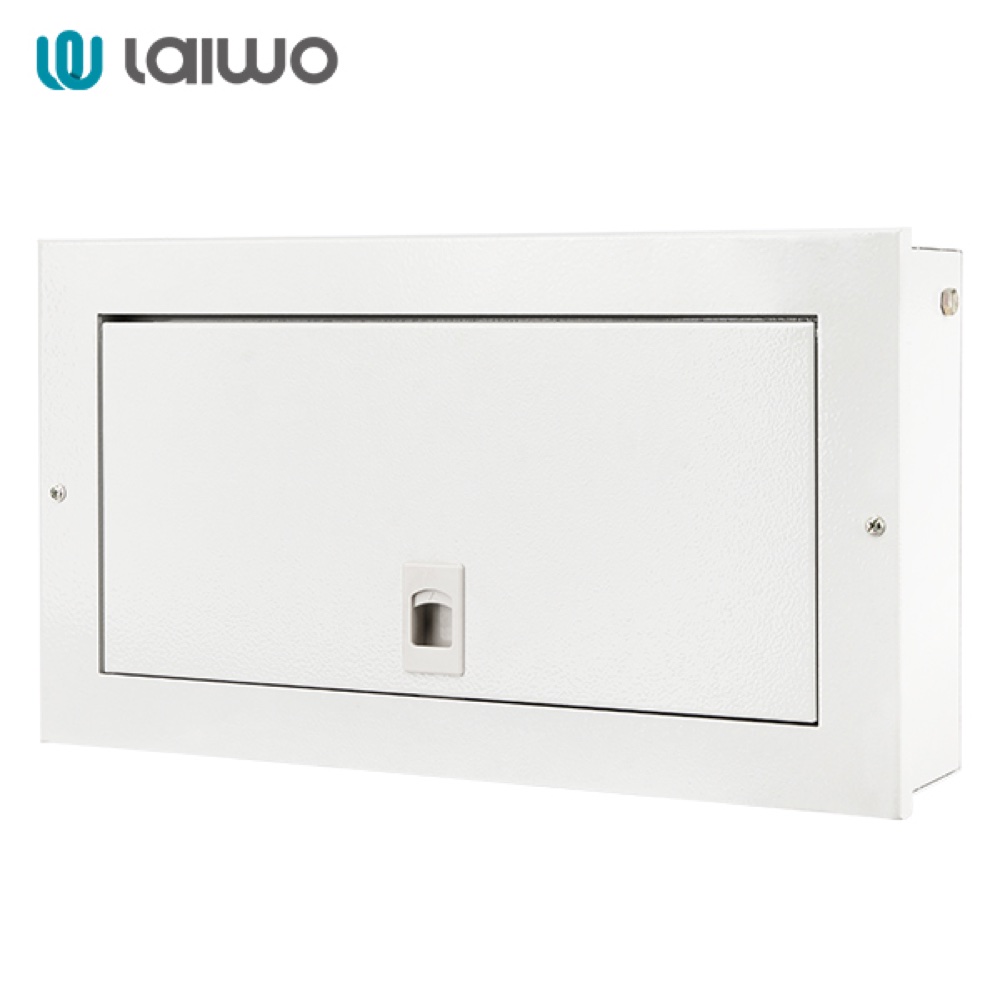

Single Phase Plug-in MCB Metal Distribution Box
Built around a plug-in busbar system, so breakers clip on and off without rewiring. Single phase, with both a main switch and an RCD on the incomer.
Technical overview
Core specifications
ModelWPSP
Rated voltageAC 240V, 50/60Hz
Maximum loading100A
IncomerDP 100A main switch
RCDDP 100A
Device compatibilityPlug-in MCB only
BusbarComplete plug-in live busbar system
Neutral & earthSectioned terminals both sides
Ingress protectionIP40
InstallationSurface mounted
Model selection note Ratings and approval scope vary by configuration.
Include the destination market, application and required rating in your inquiry so sales can match the exact model and documentation.
Product video
See the product and its application.
Short product and application footage to support technical evaluation and specification.
Commercial & documentation
Information purchasing teams expect
Commercial terms are managed by model so purchasing teams can distinguish standard supply, samples and OEM orders.
Sample cost and preparation time are confirmed with the selected model.
Standard and customised orders may use different timelines.
The applicable term is linked to product family, market and supply conditions.
Technical files
Datasheet, dimensions and certificate scope
Technical files are supplied against the selected model so ratings, dimensions and compliance scope remain clear.
PDF · Product datasheet DWG/PDF · Dimensions & installation PDF · Certificate scope
Request Technical Files Typical use
- Boards reconfigured in service
- Replacement programmes
- Panel builder supply
Compliance references
- BS EN 61439-3
- CE · UKCA
Customisation scope
- Enclosure marking
- Circuit schedule
- Populated device configuration
