Plug-in MCB Distribution Box

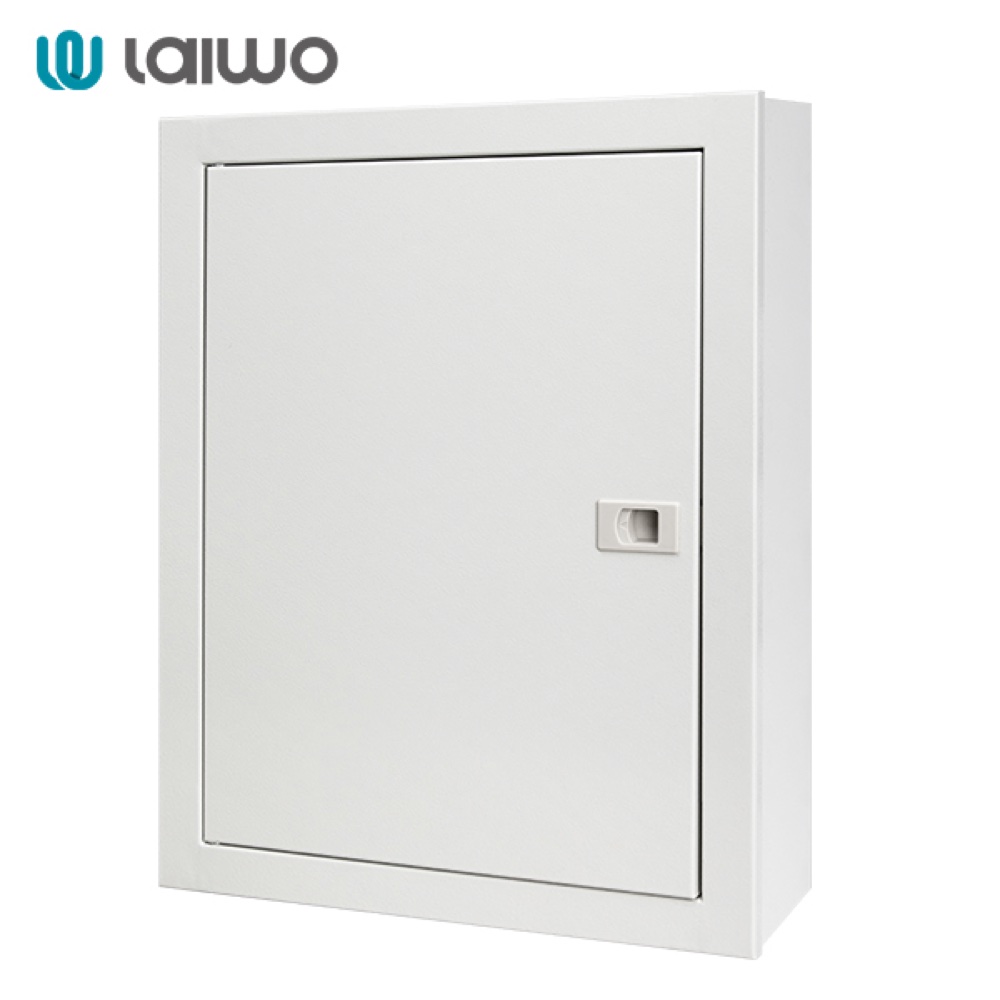

Three Phase Plug-in MCB Metal Distribution Board
Three-phase plug-in board in five way counts, each supplied with a four-pole RCD and a three-pole main switch.
Technical overview
Core specifications
Part numbersWPTP-4Way/RI, -6Way/RI, -8Way/RI, -10Way/RI, -12Way/RI
Rated voltageAC 415V, 50/60Hz
Maximum loading100A
Ways3 × 4 to 3 × 12
Incomer3P 100A main switch
RCD4P 100A
Device compatibilityPlug-in MCB only
BusbarComplete plug-in live busbar system
Ingress protectionIP40
InstallationSurface mounted
Model selection note Ratings and approval scope vary by configuration.
Include the destination market, application and required rating in your inquiry so sales can match the exact model and documentation.
Product video
See the product and its application.
Short product and application footage to support technical evaluation and specification.
Commercial & documentation
Information purchasing teams expect
Commercial terms are managed by model so purchasing teams can distinguish standard supply, samples and OEM orders.
Sample cost and preparation time are confirmed with the selected model.
Standard and customised orders may use different timelines.
The applicable term is linked to product family, market and supply conditions.
Technical files
Datasheet, dimensions and certificate scope
Technical files are supplied against the selected model so ratings, dimensions and compliance scope remain clear.
PDF · Product datasheet DWG/PDF · Dimensions & installation PDF · Certificate scope
Request Technical Files Typical use
- Commercial distribution
- Boards reconfigured in service
- Panel builder supply
Compliance references
- BS EN 61439-3
- CE · UKCA
Customisation scope
- Enclosure marking
- Circuit schedule
- Populated device configuration
