TP&N Distribution Board

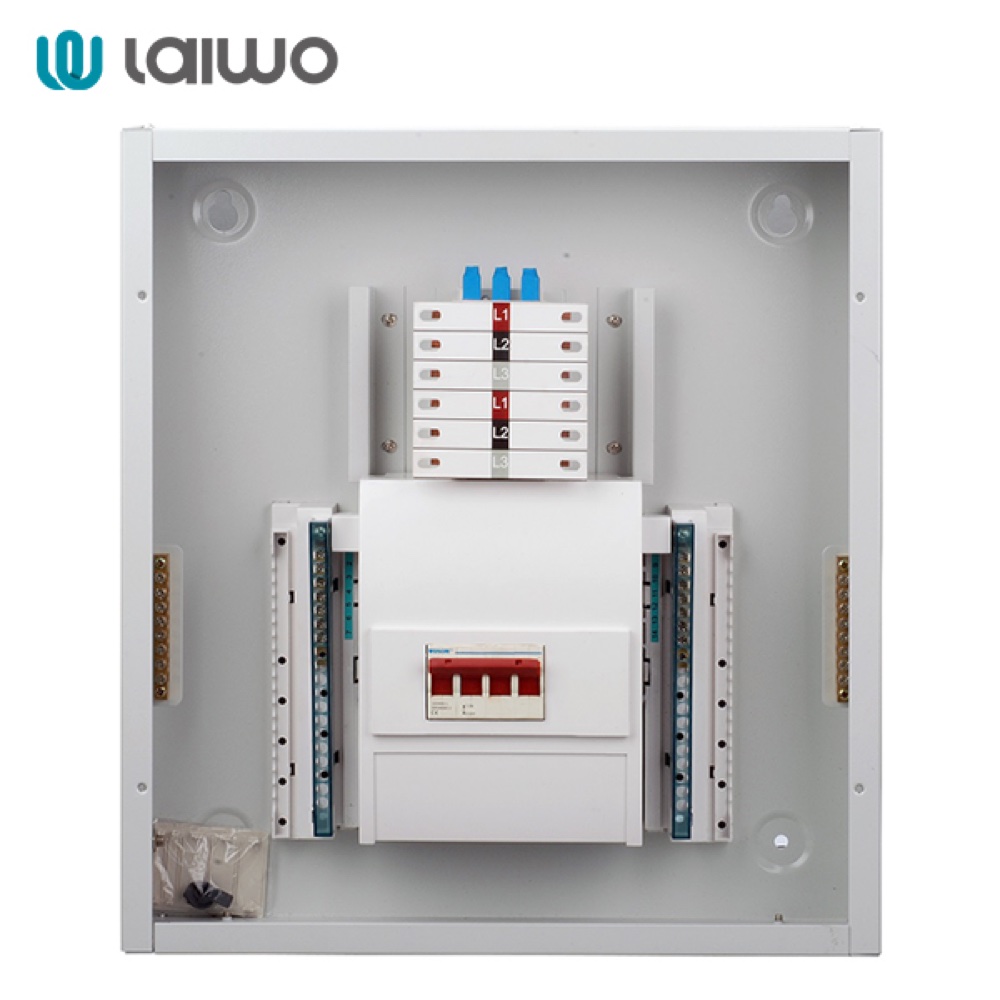

125A TP&N Metal Distribution Board
Three-phase and neutral distribution for commercial projects. Outgoing ways, incomer and surge protection are configured per board rather than fixed.
Technical overview
Core specifications
Rated current125A
SystemThree phase + neutral
WaysCategory range up to 3 × 24 ways
EnclosureMetal
Model selection note Ratings and approval scope vary by configuration.
Include the destination market, application and required rating in your inquiry so sales can match the exact model and documentation.
Product video
See the product and its application.
Short product and application footage to support technical evaluation and specification.
Commercial & documentation
Information purchasing teams expect
Commercial terms are managed by model so purchasing teams can distinguish standard supply, samples and OEM orders.
Sample cost and preparation time are confirmed with the selected model.
Standard and customised orders may use different timelines.
The applicable term is linked to product family, market and supply conditions.
Technical files
Datasheet, dimensions and certificate scope
Technical files are supplied against the selected model so ratings, dimensions and compliance scope remain clear.
PDF · Product datasheet DWG/PDF · Dimensions & installation PDF · Certificate scope
Request Technical Files Typical use
- Commercial buildings
- Workshops
- Project distribution systems
Compliance references
- BS EN 61439-3 reference
- CE / UKCA · document scope available on request
Customisation scope
- Ways and incomer configuration
- SPD option
- Project labelling
