TP&N Distribution Board

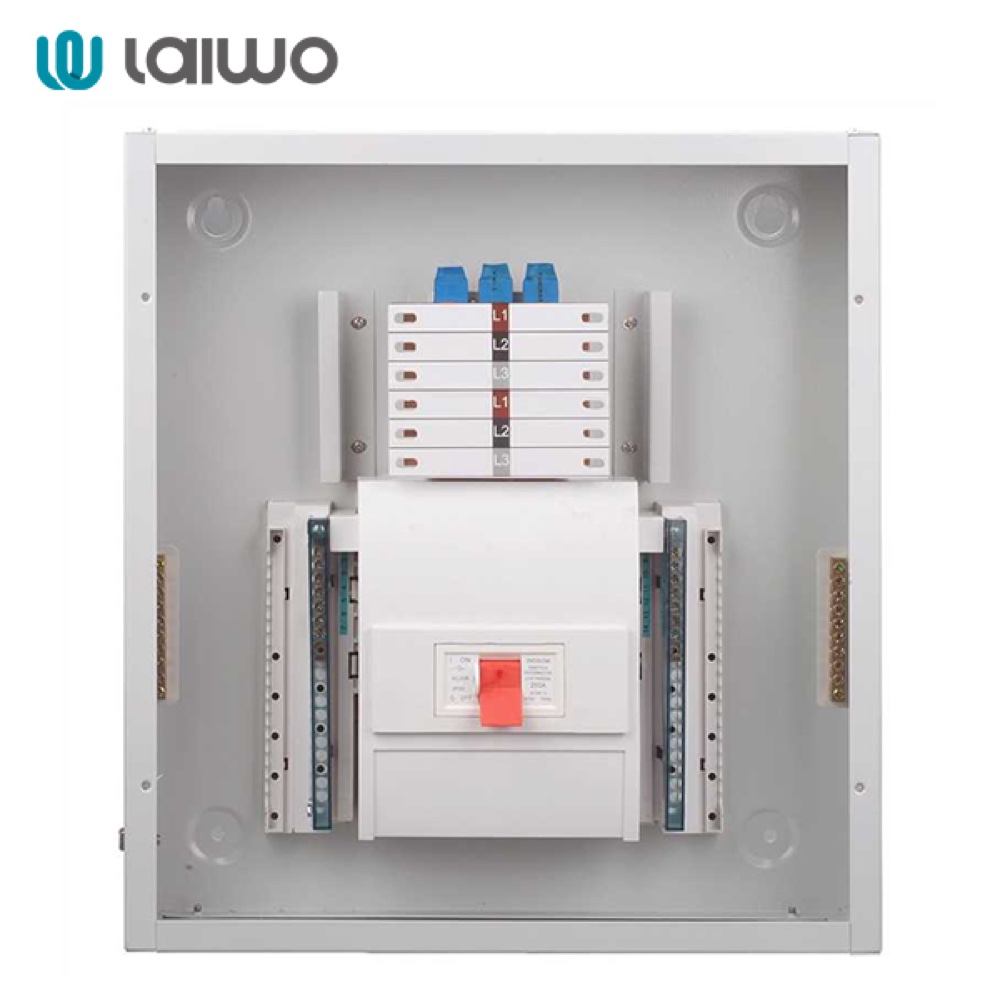

250A TP&N Metal Distribution Board
Steps the same three-phase platform up to 250A on a three-pole main switch, for sub-mains and larger commercial boards.
Technical overview
Core specifications
Part numbersWTPN04-250 – WTPN24-250
Rated current250A
Ways4 to 24
Incomer3P 250A main switch
BusbarFully enclosed 250A
Rated voltageAC 380 / 415V, 50/60Hz
Neutral & earthSectioned terminals both sides
ShroudingFull shrouding on incomer and terminals
Gland plateRemovable, top and bottom
InstallationSurface mounted
Model selection note Ratings and approval scope vary by configuration.
Include the destination market, application and required rating in your inquiry so sales can match the exact model and documentation.
Product video
See the product and its application.
Short product and application footage to support technical evaluation and specification.
Commercial & documentation
Information purchasing teams expect
Commercial terms are managed by model so purchasing teams can distinguish standard supply, samples and OEM orders.
Sample cost and preparation time are confirmed with the selected model.
Standard and customised orders may use different timelines.
The applicable term is linked to product family, market and supply conditions.
Technical files
Datasheet, dimensions and certificate scope
Technical files are supplied against the selected model so ratings, dimensions and compliance scope remain clear.
PDF · Product datasheet DWG/PDF · Dimensions & installation PDF · Certificate scope
Request Technical Files Typical use
- Commercial sub-mains
- Light industry
- Project distribution systems
Compliance references
- BS EN 61439-3
- CE · UKCA
Customisation scope
- Enclosure marking
- Circuit schedule
- Populated device configuration
