DC Protection Devices
WPV32 Photovoltaic Fuse Holder
DIN-rail holders for the matching PV links, at 1000V and 1500V. The 1000V version carries a blown-fuse indicator, which is what makes a fault findable on an array without pulling every holder.
Technical overview
Core specifications
Rated current32A

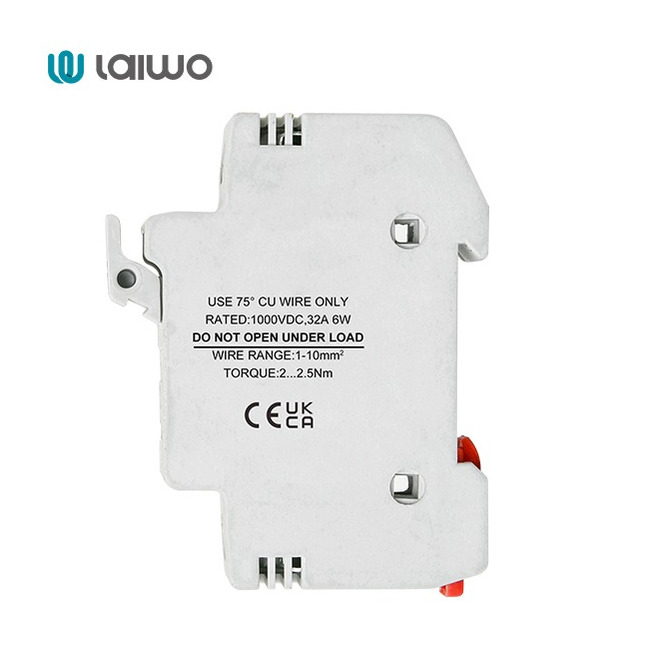

WPV32-1038X1000VDC, 10 × 38, with indicator
WPV32-10851500VDC, 10 × 85
Utilization categorygPV
SuppliedHolder only — fuse link ordered separately
MountingDIN rail
Model selection note Ratings and approval scope vary by configuration.
Include the destination market, application and required rating in your inquiry so sales can match the exact model and documentation.
Product video
See the product and its application.
Short product and application footage to support technical evaluation and specification.
Commercial & documentation
Information purchasing teams expect
Commercial terms are managed by model so purchasing teams can distinguish standard supply, samples and OEM orders.
Sample cost and preparation time are confirmed with the selected model.
Standard and customised orders may use different timelines.
The applicable term is linked to product family, market and supply conditions.
Technical files
Datasheet, dimensions and certificate scope
Technical files are supplied against the selected model so ratings, dimensions and compliance scope remain clear.
PDF · Product datasheet DWG/PDF · Dimensions & installation PDF · Certificate scope
Request Technical Files Typical use
- PV combiner boxes
- String protection assemblies
- Inverter input protection
Compliance references
- IEC / EN 60269-3
- BS 88-3
Customisation scope
- With or without indicator
- Marking
- Packaging
