Residual Current Circuit Breaker

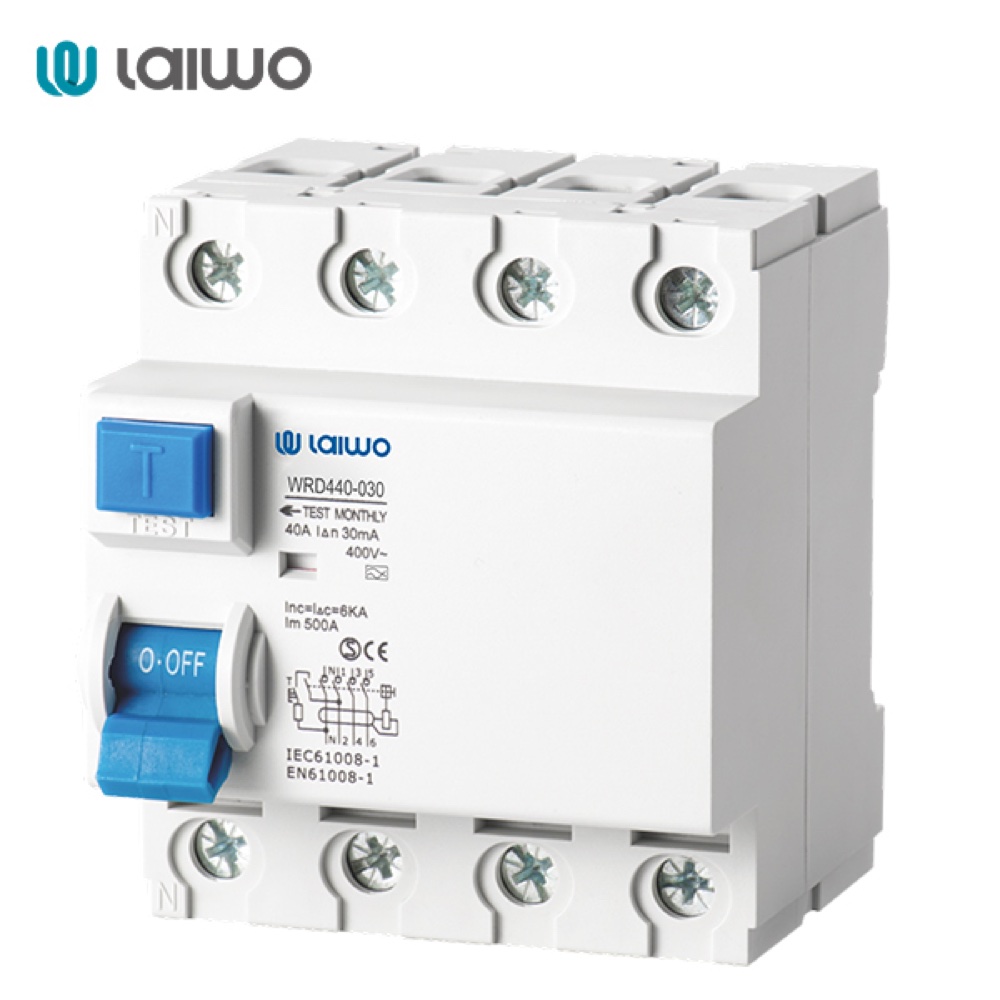

WRD Type A/AC Residual Current Circuit Breaker
Type A residual-current protection covering 25A to 100A. It responds to pulsating DC components as well as sinusoidal AC, which is why the catalogue positions it for individual EV charge points where the vehicle being charged is unknown.
Technical overview
Core specifications
Rated current25, 40, 63, 80, 100A
Poles2P, 4P
Residual operating current I∆n30, 100, 300mA
TypeA / AC
Rated voltage240 / 415V AC
Conditional breaking current Inc6000A
Tripping durationInstantaneous, ≤0.1s
Electro-mechanical endurance4,000 cycles
Connection capacityRigid conductor up to 25mm²
Mounting35mm symmetrical DIN rail
Model selection note Ratings and approval scope vary by configuration.
Include the destination market, application and required rating in your inquiry so sales can match the exact model and documentation.
Product video
See the product and its application.
Short product and application footage to support technical evaluation and specification.
Commercial & documentation
Information purchasing teams expect
Commercial terms are managed by model so purchasing teams can distinguish standard supply, samples and OEM orders.
Sample cost and preparation time are confirmed with the selected model.
Standard and customised orders may use different timelines.
The applicable term is linked to product family, market and supply conditions.
Technical files
Datasheet, dimensions and certificate scope
Technical files are supplied against the selected model so ratings, dimensions and compliance scope remain clear.
PDF · Product datasheet DWG/PDF · Dimensions & installation PDF · Certificate scope
Request Technical Files Typical use
- Residential consumer units
- Commercial distribution
- Individual EV charge points
Compliance references
- IEC / EN 61008-1
- CB · SEMKO · CE · UKCA
Customisation scope
- Brand marking
- Packaging
- Technical literature
