Residual Current Circuit Breaker

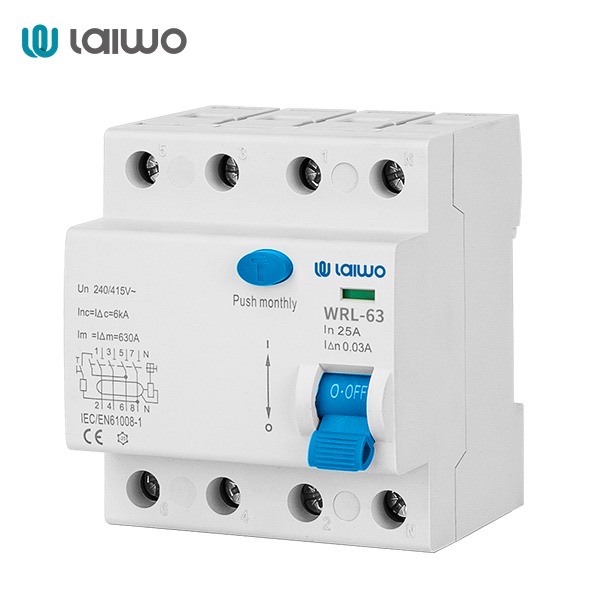

WRL-63 Type A/AC Residual Current Circuit Breaker
Residual-current protection without overcurrent protection, covering 16A to 63A in 1P+N and 3P+N, with 30, 100 and 300mA sensitivities and both Type A and Type AC detection.
Technical overview
Core specifications
Rated current In16, 20, 25, 32, 40, 50, 63A
Poles1P+N, 3P+N
Rated voltage Un240V (1P+N), 415V (3P+N)
Residual current typeAC, A
Rated residual operating current I∆n30, 100, 300mA
Rated conditional short-circuit current Inc6000A
Rated conditional residual short-circuit current I∆c6000A
Making and breaking capacity Im500A (In ≤ 50A), 630A (In = 63A)
Residual making and breaking capacity I∆m500A (In ≤ 50A), 630A (In = 63A)
Non-operating residual current I∆no0.5 I∆n
Insulation voltage Ui500V
Impulse withstand voltage Uimp4000V
Tightening torque2.0 N·m
Mechanical life4,000 operations
Operating temperature-25 to +40°C
Storage temperature-25 to +70°C
Pollution degree2
Ingress protectionIP20
Mounting typeII
Model selection note Ratings and approval scope vary by configuration.
Include the destination market, application and required rating in your inquiry so sales can match the exact model and documentation.
Product video
See the product and its application.
Short product and application footage to support technical evaluation and specification.
Commercial & documentation
Information purchasing teams expect
Commercial terms are managed by model so purchasing teams can distinguish standard supply, samples and OEM orders.
Sample cost and preparation time are confirmed with the selected model.
Standard and customised orders may use different timelines.
The applicable term is linked to product family, market and supply conditions.
Technical files
Datasheet, dimensions and certificate scope
Technical files are supplied against the selected model so ratings, dimensions and compliance scope remain clear.
PDF · Product datasheet DWG/PDF · Dimensions & installation PDF · Certificate scope
Request Technical Files Typical use
- Residential distribution boards
- Commercial and high-rise buildings
- Industrial sub-distribution
Compliance references
- IEC / EN 61008-1
Customisation scope
- Brand marking
- Sensitivity and pole mix
- Packaging
