Residual Current Circuit Breaker

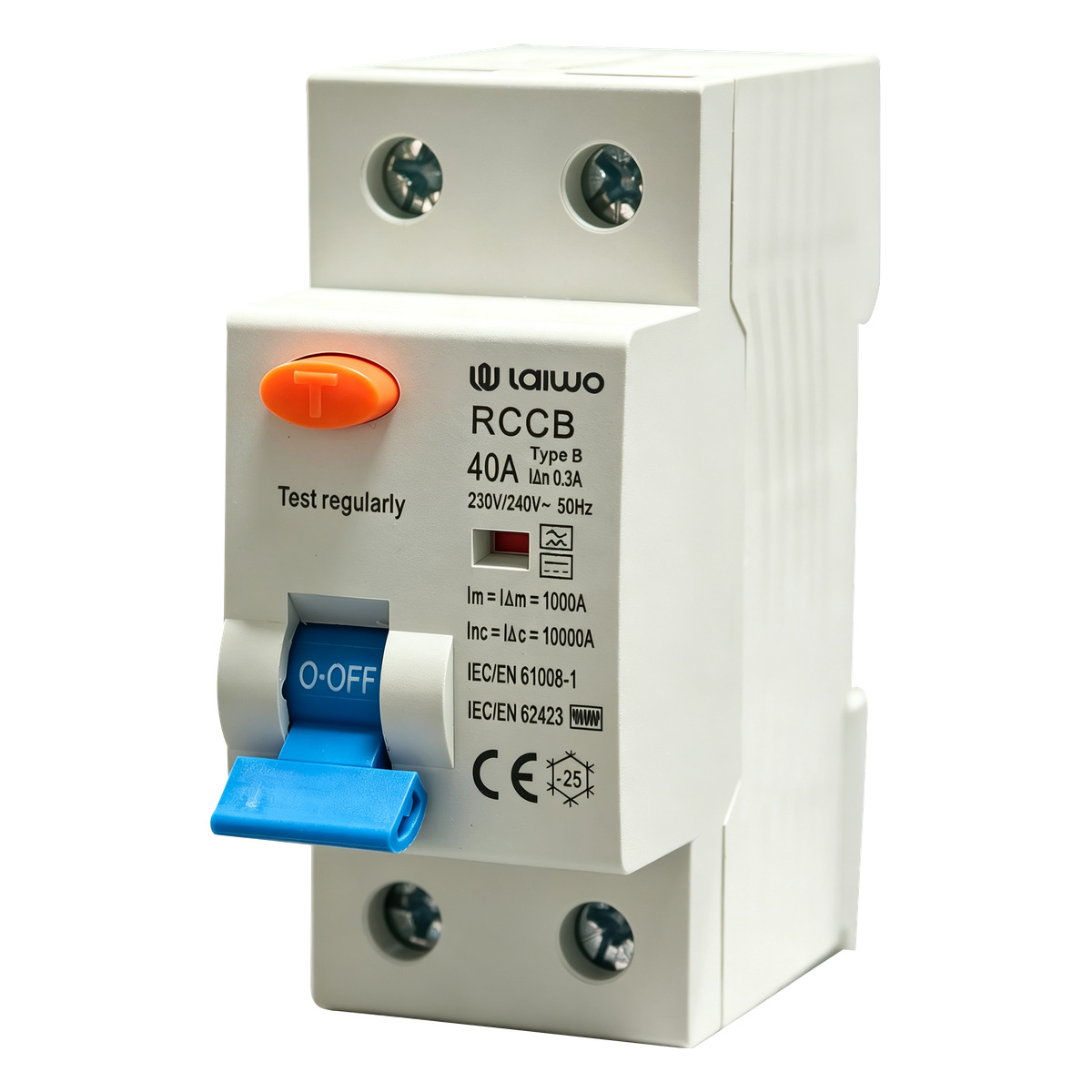

WRV Type B Residual Current Circuit Breaker
Type B protection detects smooth DC residual current, which ordinary AC and Type A devices cannot. That matters wherever an installation contains PV inverters, frequency converters or DC-side EV charging — the fault current there is not necessarily alternating.
Technical overview
Core specifications
Rated current25, 40, 63A
Poles2P, 4P
Residual operating current I∆n30, 100, 300mA
TypeB — AC, pulsating and smooth DC residual currents
Smooth DC detectionRated 6mA
Rated voltage Un230 / 400V AC
Insulation voltage Ui440V
Impulse withstand Uimp (1.2/50µs)4kV
Short-circuit capacity Icn10kA
Ingress protectionIP20
Connection capacity1.5 – 35mm²
Model selection note Ratings and approval scope vary by configuration.
Include the destination market, application and required rating in your inquiry so sales can match the exact model and documentation.
Product video
See the product and its application.
Short product and application footage to support technical evaluation and specification.
Commercial & documentation
Information purchasing teams expect
Commercial terms are managed by model so purchasing teams can distinguish standard supply, samples and OEM orders.
Sample cost and preparation time are confirmed with the selected model.
Standard and customised orders may use different timelines.
The applicable term is linked to product family, market and supply conditions.
Technical files
Datasheet, dimensions and certificate scope
Technical files are supplied against the selected model so ratings, dimensions and compliance scope remain clear.
PDF · Product datasheet DWG/PDF · Dimensions & installation PDF · Certificate scope
Request Technical Files Typical use
- PV and inverter installations
- EV charging infrastructure
- Installations with frequency converters
Compliance references
- IEC / EN 61008-1
- IEC / EN 62423
Customisation scope
- Brand marking
- Packaging
- Technical literature
