DC Protection Devices

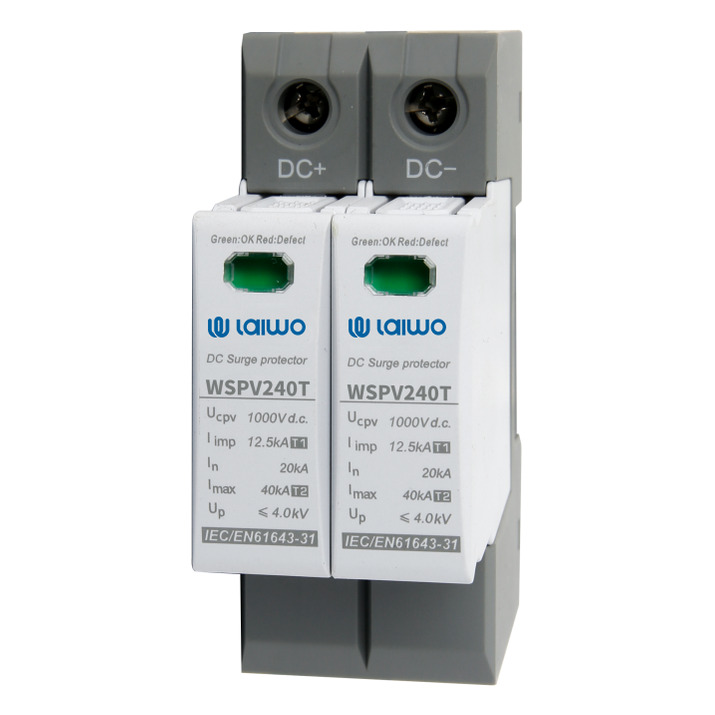

WSPV DC Surge Protective Device
Type 1+2 surge protection for the DC side, in two and three pole versions up to 1500V. A PV array is an exposed conductive structure on a roof, so the lightning-current duty here is the Type 1 case rather than the overvoltage-only case.
Technical overview
Core specifications
TypeType 1+2
Open-circuit voltage Uoc600, 1000 or 1500VDC
Max continuous operating voltage Uc1300VDC
Lightning impulse current Iimp12.5kA
Nominal discharge current In20kA
Max discharge current Imax40kA
Voltage protection level Up≤4.0kV
Poles2P (to 1000V), 3P (to 1500V)
Ingress protectionIP20
Ambient temperature−40°C to +80°C
Remote signallingOptional
Model selection note Ratings and approval scope vary by configuration.
Include the destination market, application and required rating in your inquiry so sales can match the exact model and documentation.
Product video
See the product and its application.
Short product and application footage to support technical evaluation and specification.
Commercial & documentation
Information purchasing teams expect
Commercial terms are managed by model so purchasing teams can distinguish standard supply, samples and OEM orders.
Sample cost and preparation time are confirmed with the selected model.
Standard and customised orders may use different timelines.
The applicable term is linked to product family, market and supply conditions.
Technical files
Datasheet, dimensions and certificate scope
Technical files are supplied against the selected model so ratings, dimensions and compliance scope remain clear.
PDF · Product datasheet DWG/PDF · Dimensions & installation PDF · Certificate scope
Request Technical Files Typical use
- PV array DC side
- Combiner boxes
- Inverter input protection
Compliance references
- EN 61643-31
Customisation scope
- Remote signalling option
- Marking
- Packaging
